Precast reinforced concrete
Features and operating principle

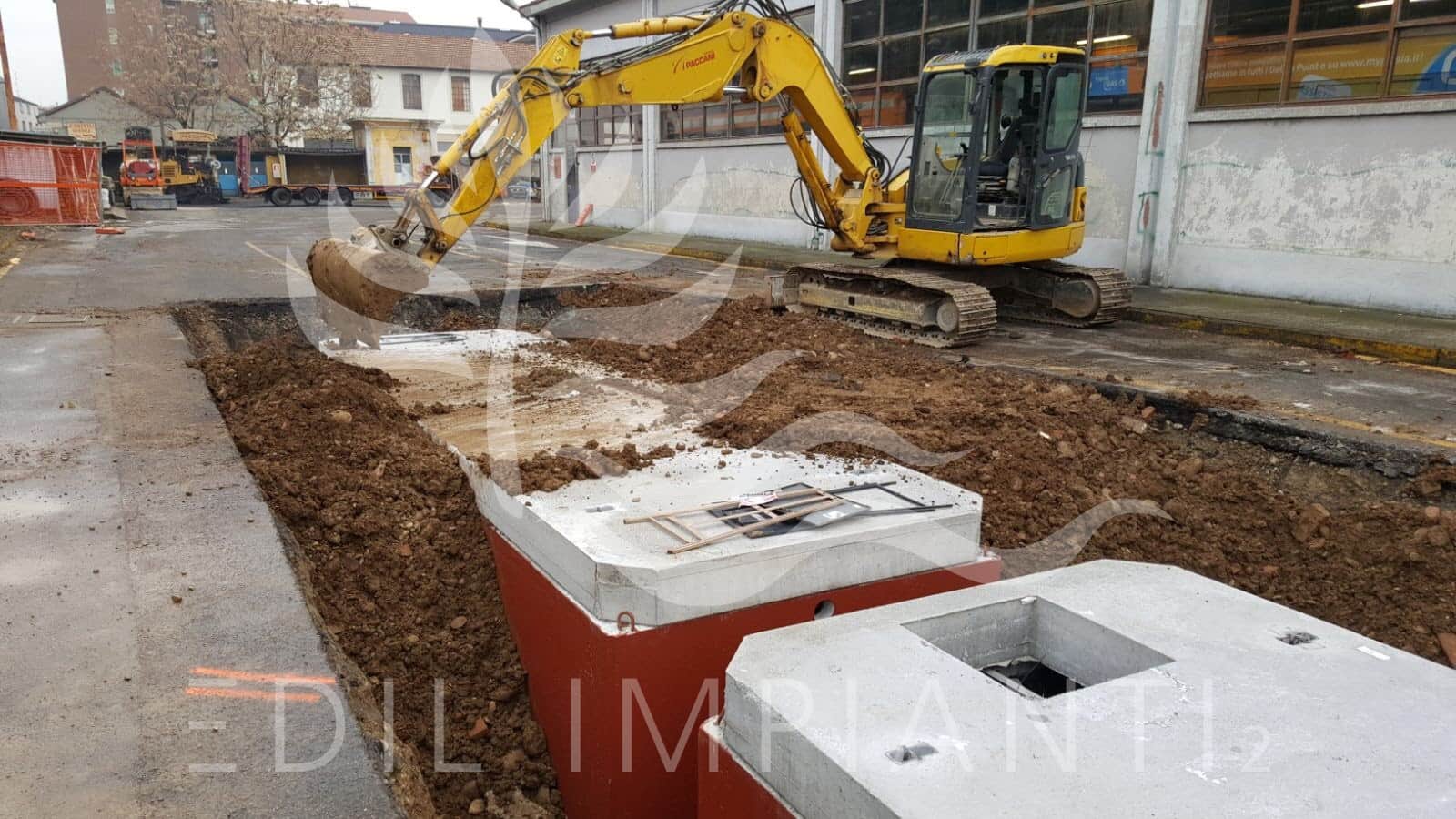

Precast concrete Bicameral/Tricameral Underground Septic Tanks made in compliance with the UNI EN 12566-1 standard by a company operating with a quality system in compliance with the UNI EN ISO 9001 regulation must ensure a suitable continuous input, permanence of untreated slurry and clarified slurry as an output. Walls must be waterproof; the tank must be completely underground and equipped with a ventilation pipe such to avoid foul odors. Bicameral/tricameral septic tanks must have an access door on top for regular inspections. Sludge and crust extraction is performed on a regular basis, usually from 1 to 4 times a year. Biogas produced during fermentation is released through the side vents next to the inlet opening, which must always be connected and led to the top cover.
Precast concrete bicameral/tricameral septic tanks are composed of a series of adjacent compartments connected with each other by systems aimed at reducing sludge and foam transition. This kind of septic tanks are composed of 2 or 3 compartments with different volumetric ratios between them - 2:1 and 2:1:1 - with a venting pipe for gas outlet, installed at a suitable height to avoid smell.
Supply specifications
Delivery and installation of Underground Bicameral / Tricameral septic Tank manufactured in DECLARED SERIES Mod. VSB____ or VST____ , UNI EN 12566-1 compliant, with external dimensions: cm.___x___x h.___ , effective volume ______ lt, for____P.E. with 250/225 lt., for____P.E. with 200 lt., for ____P.E. with 150 lt., manufactured by EDIL IMPIANTI 2 S.r.l. with UNI EN ISO 9001 and ISO 45001 management system made of monoblock vibrated concrete, reinforced with vertical pillars and stainless steel horizontal beams, with CE-certified materials, concrete in compressive strength class C45/55 (RCK >55 N/mm²), internal improved-adhesion steel reinforcements checked in our plant, GREESMIX5® steel fibers (patent No. 0001421398 issued by the Ministry for Economic Development) and electro-welded square mesh B450C, with certification of CHEMICAL RESISTANCE and REACTION TO FIRE (Class A1) issued by an external body based on UNI EN standards.
The Bicameral/Tricameral Tank is delivered with:
- inlet/outlet opening arrangement;
- inlet-side vent arrangement;

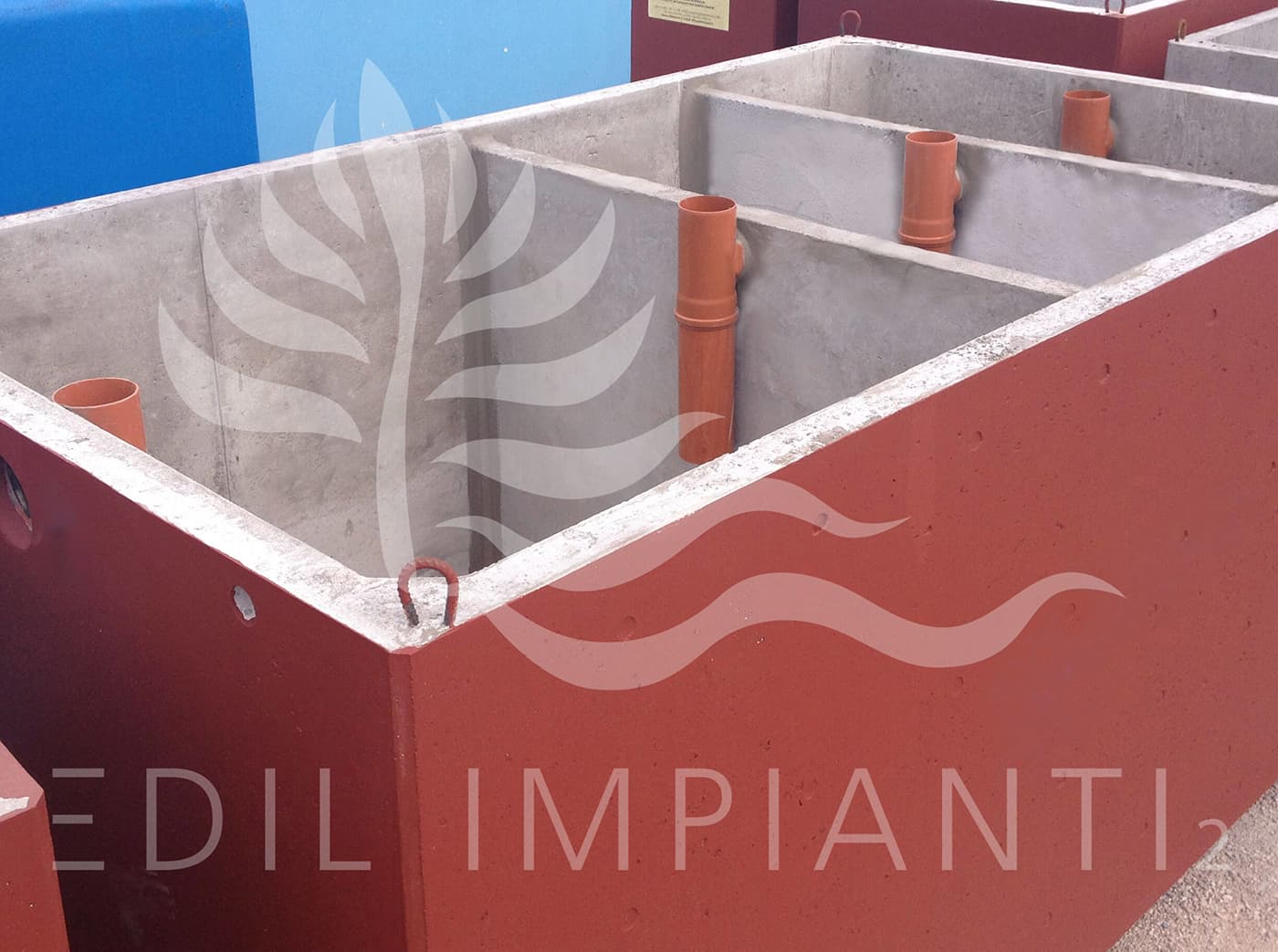

- Vibrated reinforced concrete partition wall/s with connection holes for compartment partition.
The Bicameral/Tricameral Septic Tank can - on demand- be equipped with:
- PVC tee connections or AISI 304 stainless steel baffles.
Regulation
UNI EN 12566-1 small wastewater treatment systems up to 50 PE Part 1: precast septic tanks.
Leg. Decree 152/06 and resolution of the Emilia-Romagna Regional Council 1053/2003 domestic wastewater not discharged into public sewers, discharge into surface water.
Fields of application
Civil residence systems, slaughterhouses, wine cellars, cheese factories, food industry, conservation industry, pasta manufacturers, pastry manufacturers, fish industry, laundry services, civil residence, blocks, restaurants, hotels, hospitals, communities, canteens, catering services, schools, bars, camping sites, bathing establishments, service stations, meal production centers.
Suggestions and technical information
The concrete Septic Tank and the Imhoff Tank are a primary pre-treatment and must be integrated with: Biodiscs, activated sludge, constructed wetland, MBBR, MBR, SBR, reedbeds, biological aerated filters (BAFs), aerobic and anaerobic trickling filters.
Bicameral Septic Tank Dimensions
Download E.U. dimensions
Select Article Code to access the E.U. dimensions for the product.
Article Code
Data Sheet Download
Select Article Code to access the Data Sheet for the product.
Article Code
| Article Code |
Usable Volume (lt) |
lt. 250 for P.E. |
lt. 225 for P.E. |
lt. 200 for P.E. |
lt. 150 for P.E. |
External Dimensions Septic Tank (cm) |
Tank Weight (ql) |
Cover slab weight (ql) | ||||
| Width | Length | Height | h. 10 cm (B125) |
h. 15 cm (C250) |
h. 20 cm (D400) |
|||||||
| VSB01 | 1.500 | 6 | 6 | 7 | 10 | 125 | 130 | 150 | 17,6 | 4,0 | 6,1 | 8,1 |
| VSB02A | 1.750 | 7 | 7 | 8 | 11 | 125 | 180 | 130 | 19,5 | 5,6 | 8,4 | 11,2 |
| VSB02 | 2.150 | 8 | 9 | 10 | 14 | 125 | 180 | 150 | 21,6 | 5,6 | 8,4 | 11,2 |
| VSB03B | 2.500 | 10 | 11 | 12 | 16 | 175 | 180 | 130 | 24,1 | 7,8 | 11,7 | 15,6 |
| VSB03 | 3.000 | 12 | 13 | 15 | 20 | 175 | 180 | 150 | 26,6 | 7,8 | 11,7 | 15,6 |
| VSB04 | 3.870 | 15 | 17 | 19 | 25 | 180 | 240 | 150 | 51,4 | 10,7 | 16,1 | 21,5 |
| VSB04B | 3.990 | 15 | 17 | 19 | 26 | 180 | 180 | 200 | 53,5 | 8,0 | 12,1 | 16,1 |
| VSB05 | 5.040 | 20 | 22 | 25 | 33 | 180 | 220 | 200 | 60,2 | 9,8 | 14,8 | 19,7 |
| VSB06 | 6.350 | 25 | 28 | 31 | 42 | 180 | 270 | 200 | 68,7 | 12,1 | 18,1 | 24,1 |
| VSB07 | 7.660 | 30 | 34 | 38 | 51 | 180 | 320 | 200 | 77,1 | 14,3 | 21,5 | 28,6 |
| VSB07A | 8.970 | 35 | 39 | 44 | 59 | 180 | 370 | 200 | 85,5 | 16,5 | 24,8 | 33,1 |
| VSB08A | 10.290 | 41 | 45 | 51 | 68 | 180 | 420 | 200 | 94,0 | 18,8 | 28,2 | 37,6 |
| VSB09 | 11.600 | 46 | 51 | 58 | 77 | 180 | 470 | 200 | 102,5 | 21,0 | 31,5 | 42,0 |
| VSB09A | 12.910 | 51 | 57 | 64 | 86 | 180 | 520 | 200 | 110,9 | 23,3 | 34,9 | 46,5 |
| VSB09B | 14.220 | 56 | 63 | 71 | 94 | 180 | 570 | 200 | 119,4 | 25,5 | 38,2 | 51,0 |
| VSB10 | 14.450 | 57 | 64 | 72 | 96 | 246 | 420 | 200 | 118,4 | 25,7 | 38,5 | 51,3 |
| VSB12 | 18.860 | 75 | 83 | 94 | 125 | 246 | 420 | 250 | 138,1 | 25,7 | 38,5 | 51,3 |
| VSB13 | 21.280 | 85 | 94 | 106 | 141 | 246 | 470 | 250 | 154,7 | 28,7 | 43,1 | 57,4 |
| VSB14 | 23.700 | 94 | 105 | 118 | 158 | 246 | 520 | 250 | 165,9 | 31,8 | 47,7 | 63,6 |
| VSB16 | 28.530 | 114 | 126 | 142 | 190 | 246 | 620 | 250 | 188,3 | 37,9 * | 56,8 * | 75,8 * |
| VSB19 | 35.790 | 143 | 159 | 178 | 238 | 246 | 770 | 250 | 227,2 | 47,1 * | 70,6 * | 94,1 * |
| VSB22 | 43.040 | 172 | 191 | 215 | 286 | 246 | 920 | 250 | 260,8 | 56,2 * | 84,3 * | 112,4 * |
| VSB23 | 45.460 | 181 | 202 | 227 | 303 | 246 | 970 | 250 | 277,4 | 59,3 * | 88,9 * | 118,5 * |
* Cover Slab divided into two parts
The data reported is purely indicative
Bicameral Tank Miniblock version Dimensions
Download E.U. dimensions
Select Article Code to access the E.U. dimensions for the product.
Article Code
Data Sheet Download
Select Article Code to access the Data Sheet for the product.
Article Code
| Article Code |
Usable Volume (lt) |
lt. 250 for P.E. |
lt. 225 for P.E. |
lt. 200 for P.E. |
lt. 150 for P.E. |
External Dimensions Septic Tank (cm) |
Tank Weight (ql) |
Cover slab weight (ql) | ||||
| Width | Length | Height | h. 10 cm (B125) |
h. 15 cm (C250) |
h. 20 cm (D400) |
|||||||
| VSB-MK1A | 990 | 3 | 4 | 5 | 6 | 120 | 170 | 100 | 22,0 | 5,0 | 8,0 | 10,0 |
| VSB-MK2A | 1.340 | 5 | 6 | 7 | 8 | 120 | 220 | 100 | 26,0 | 7,0 | 10,0 | 13,0 |
| VSB-MK3A | 1.690 | 6 | 7 | 8 | 11 | 120 | 270 | 100 | 31,0 | 8,0 | 12,0 | 16,0 |
| VSB-MK4A | 2.040 | 8 | 9 | 10 | 13 | 120 | 320 | 100 | 35,0 | 10,0 | 14,0 | 19,0 |
| VSB-MK1B | 1.700 | 6 | 7 | 8 | 11 | 120 | 170 | 150 | 30,0 | 5,0 | 8,0 | 10,0 |
| VSB-MK2B | 2.300 | 9 | 10 | 11 | 15 | 120 | 220 | 150 | 36,0 | 7,0 | 10,0 | 13,0 |
| VSB-MK3B | 2.900 | 11 | 12 | 14 | 19 | 120 | 270 | 150 | 42,0 | 8,0 | 12,0 | 16,0 |
| VSB-MK4B | 3.500 | 14 | 15 | 17 | 23 | 120 | 320 | 150 | 47,0 | 10,0 | 14,0 | 19,0 |
| VSB-MK1C | 2.490 | 9 | 11 | 12 | 16 | 120 | 170 | 205 | 39,0 | 5,0 | 8,0 | 10,0 |
| VSB-MK2C | 3.360 | 13 | 14 | 16 | 22 | 120 | 220 | 205 | 46,0 | 7,0 | 10,0 | 13,0 |
| VSB-MK3C | 4.240 | 16 | 18 | 21 | 28 | 120 | 270 | 205 | 53,0 | 8,0 | 12,0 | 16,0 |
| VSB-MK4C | 5.110 | 20 | 22 | 25 | 34 | 120 | 320 | 205 | 60,0 | 10,0 | 14,0 | 19,0 |
The data reported is purely indicative
Tricameral Septic Tank Dimensions
Download E.U. dimensions
Select Article Code to access the E.U. dimensions for the product.
Article Code
Data Sheet Download
Select Article Code to access the Data Sheet for the product.
Article Code
| Article Code |
Usable Volume (lt) |
lt. 250 for P.E. |
lt. 225 for P.E. |
lt. 200 for P.E. |
lt. 150 for P.E. |
External Dimensions Septic Tank (cm) |
Tank Weight (ql) |
Cover slab weight (ql) | ||||
| Width | Length | Height | h. 10 cm (B125) |
h. 15 cm (C250) |
h. 20 cm (D400) |
|||||||
| VST04 | 3.720 | 14 | 16 | 18 | 24 | 180 | 240 | 150 | 55,7 | 10,7 | 16,1 | 21,5 |
| VST05 | 4.830 | 19 | 21 | 24 | 32 | 180 | 220 | 200 | 66,1 | 9,8 | 14,8 | 19,7 |
| VST06 | 6.140 | 24 | 27 | 30 | 40 | 180 | 270 | 200 | 74,6 | 12,1 | 18,1 | 24,1 |
| VST07 | 7.450 | 29 | 33 | 37 | 49 | 180 | 320 | 200 | 83,0 | 14,3 | 21,5 | 28,6 |
| VST07A | 8.760 | 35 | 38 | 43 | 58 | 180 | 370 | 200 | 91,4 | 16,5 | 24,8 | 33,1 |
| VST08A | 10.080 | 40 | 44 | 50 | 67 | 180 | 420 | 200 | 99,9 | 18,8 | 28,2 | 37,6 |
| VST09 | 11.390 | 45 | 50 | 56 | 75 | 180 | 470 | 200 | 108,4 | 21,0 | 31,5 | 42,0 |
| VST09A | 12.700 | 50 | 56 | 63 | 84 | 180 | 520 | 200 | 116,8 | 23,3 | 34,9 | 46,5 |
| VST09B | 14.010 | 56 | 62 | 70 | 93 | 180 | 570 | 200 | 125,3 | 25,5 | 38,2 | 51,0 |
| VST10 | 14.080 | 56 | 62 | 70 | 93 | 246 | 420 | 200 | 128,8 | 25,7 | 38,5 | 51,3 |
| VST12 | 18.380 | 73 | 81 | 91 | 122 | 246 | 420 | 250 | 151,3 | 25,7 | 38,5 | 51,3 |
| VST13 | 20.800 | 83 | 92 | 104 | 138 | 246 | 470 | 250 | 167,9 | 28,7 | 43,1 | 57,4 |
| VST14 | 23.210 | 92 | 103 | 116 | 154 | 246 | 520 | 250 | 179,1 | 31,8 | 47,7 | 63,6 |
| VST16 | 28.050 | 112 | 124 | 140 | 187 | 246 | 620 | 250 | 201,5 | 37,9 * | 56,8 * | 75,8 * |
| VST19 | 35.310 | 141 | 156 | 176 | 235 | 246 | 770 | 250 | 240,4 | 47,1 * | 70,6 * | 94,1 * |
| VST22 | 42.560 | 170 | 189 | 212 | 283 | 246 | 920 | 250 | 274,0 | 56,2 * | 84,3 * | 112,4 * |
| VST23 | 44.980 | 179 | 199 | 224 | 299 | 246 | 970 | 250 | 290,6 | 59,3 * | 88,9 * | 118,5 * |
* Cover Slab divided into two parts
The data reported is purely indicative
