Features and operating principle

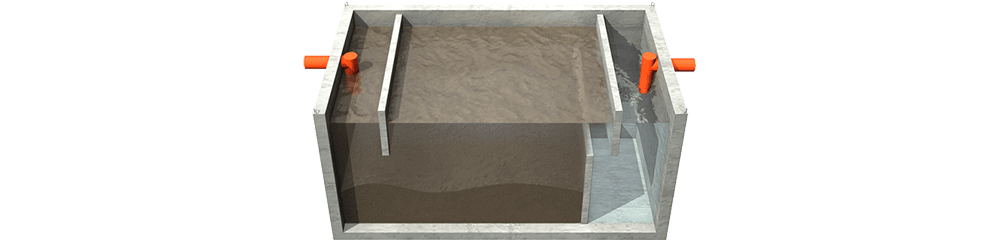

Static Desanders retain sand and other minerals which may be detrimental to the purification process. Desanders are always required in first rainwater treatment systems with relevant sand amounts, in inert storage systems, for collecting and recovering water in bathing establishments, in the fruit and vegetable sector (for washing fruits and vegetables), civil and industrial purification systems, motorway sections.
Edili Impianti Desanders can be delivered with an Automatic Sludge Extractor and Submerged Ejector Tank Cleaning System.
Supply specifications
Delivery and installation of a Static Desander to be installed underground, manufactured IN DECLARED SERIES mod. DISS____ external dimensions cm._____x_____x h_____ and total volume cubic meters_____, manufactured by EDIL IMPIANTI 2 S.r.l. with UNI EN ISO 9001 and ISO 45001 management system made of monoblock vibrated concrete, reinforced with vertical pillars and stainless steel horizontal beams, with CE-certified materials, concrete in compressive strength class C45/55 (RCK >55 N/mm²), internal improved-adhesion steel reinforcements checked in our plant, GREESMIX5® steel fibers (patent No. 0001421398 issued by the Ministry for Economic Development) and electro-welded square mesh B450C, with certification of CHEMICAL RESISTANCE and REACTION TO FIRE (Class A1) issued by an external body based on UNI EN standards.
The Static Desander is delivered with: inlets/outlets; partition wall/s to divide it into compartments; outer wall protective coating.
Dimensions
N.B. Separation times vary depending on the sand grain size.
ST = 5 min. for grain size around 0.20/0.30 mm >
ST = 25 min. for grain size around 0.06/0.16 mm
Static Desander Dimensions:
SV = ST x Q
where:
SV = Separation Volume
ST = Separation Time
Q = Flow rate
Accessories

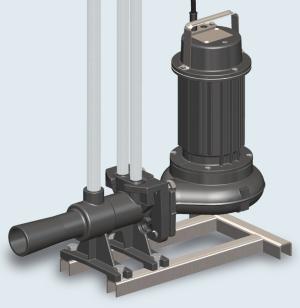

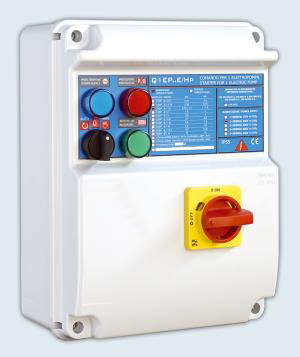

Sludge Extraction and Tank Cleaning Automatic System with Submerged Ejectors and Switchboard.
Static Desander Dimensions
Download E.U. dimensions
Select Article Code to access the E.U. dimensions for the product.
Article Code
Data Sheet Download
Select Article Code to access the Data Sheet for the product.
Article Code
| Article Code |
Volume separation Vs (mc) |
Range Q with Ts=5 min. (lt/sec) |
Range Q with Ts=25 min. (lt/sec) |
External Dimensions Desander (cm) |
Tank Weight (ql) |
Cover slab weight (ql) | ||||
| Width | Length | Height | h. 10 cm (B125) |
h. 15 cm (C250) |
h. 20 cm (D400) |
|||||
| DISS01 | 1,8 | 6,00 | 1,20 | 125 | 130 | 150 | 17,1 | 4,0 | 6,1 | 8,1 |
| DISS02 | 2,6 | 8,67 | 1,73 | 125 | 180 | 150 | 21,1 | 5,6 | 8,4 | 11,2 |
| DISS03 | 3,8 | 12,67 | 2,53 | 175 | 180 | 150 | 26,0 | 7,8 | 11,7 | 15,6 |
| DISS04 | 5,0 | 16,33 | 3,27 | 180 | 240 | 150 | 51,3 | 10,7 | 16,1 | 21,5 |
| DISS05 | 6,0 | 20,00 | 4,00 | 180 | 300 | 150 | 59,9 | 13,4 | 20,1 | 26,8 |
| DISS19 | 7,5 | 25,00 | 5,00 | 180 | 270 | 200 | 67,0 | 12,1 | 18,1 | 24,1 |
| DISS20 | 9,0 | 30,00 | 6,00 | 180 | 320 | 200 | 75,4 | 14,3 | 21,5 | 28,6 |
| DISS21 | 10,5 | 35,00 | 7,00 | 180 | 370 | 200 | 83,8 | 16,5 | 24,8 | 33,1 |
| DISS22 | 12,0 | 40,00 | 8,00 | 180 | 420 | 200 | 104,6 | 18,8 | 28,2 | 37,6 |
| DISS23 | 13,5 | 45,00 | 9,00 | 180 | 470 | 200 | 113,1 | 21,0 | 31,5 | 42,0 |
| DISS24 | 15,0 | 50,00 | 10,00 | 180 | 520 | 200 | 121,5 | 23,3 | 34,9 | 46,5 |
| DISS25 | 16,5 | 55,00 | 11,00 | 180 | 570 | 200 | 130,0 | 25,5 | 38,2 | 51,0 |
| DISS116 | 21,0 | 70,00 | 14,00 | 246 | 420 | 250 | 155,0 | 25,7 | 38,5 | 51,3 |
| DISS118 | 26,0 | 86,67 | 17,33 | 246 | 520 | 250 | 182,8 | 31,8 | 47,7 | 63,6 |
| DISS119 | 30,0 | 100,00 | 20,00 | 246 | 570 | 250 | 194,0 | 34,8 | 52,2 | 69,7 |
| DISS121 | 35,0 | 116,67 | 23,33 | 246 | 670 | 250 | 216,3 | 40,9 * | 61,4 * | 81,9 * |
| DISS123 | 40,0 | 133,33 | 26,67 | 246 | 770 | 250 | 244,1 | 47,1 * | 70,6 * | 94,1 * |
| DISS125 | 45,0 | 150,00 | 30,00 | 246 | 870 | 250 | 266,5 | 53,2 * | 79,7 * | 106,3 * |
| DISS127 | 50,0 | 166,67 | 33,33 | 246 | 970 | 250 | 294,3 | 59,3 * | 88,9 * | 118,5 * |
* Cover Slab divided into two parts
The data reported is purely indicative
